Quick Details

  • Standard or Nonstandard: Standard, Standard
  • Structure: Piston Cylinder, telescopic cylinder
  • Power: Hydraulic, Hydraulic
  • Body Material: Steel
  • Maximum Stroke: 9600MM
  • Shaft Diameter: 169mm
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: WEIRUN
  • Product name: Multi Stages Telescopic Hydraulic Cylinder
  • Body material: Steel
  • Application: Truck
  • Working pressure: 7Mpa-21Mpa
  • Packing: Plywood Case

Packaging & Delivery

Packaging Details standard export packing or as client's requirement.
Delivery Time Shipped in 15 days after payment

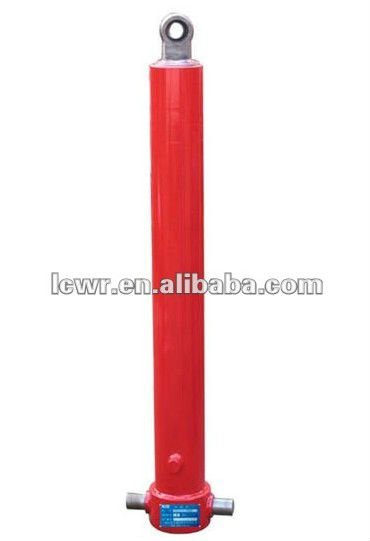

 Hyva Fe/Fc type telescopic hydraulic cylinder for dump truck//trailer/garbage truck :


ModelExtended StagesWorking PressureMax.Rod DiameterMax.Stroke LengthLifting CapacitySuitable Length of Truck Body
129-3E-3880316-19 MPa129mm3880mm20-35 ton5.2m
149-3E-3880316-19 MPa149mm3880mm25-45 ton5.2m
149-3E-4280316-19 MPa149mm4280mm25-45 ton5.6m
149-4E-3880416-19 MPa149mm3880mm25-40 ton5.2m
149-4E-4280416-19 MPa149mm4280mm25-40 ton5.6m
169-4E-4280416-19 MPa169mm4280mm30-50 ton5.2-5.6m
169-4E-4640416-19 MPa169mm4640mm32-55 ton5.6-6.1m
169-4E-5000416-19 MPa169mm5000mm32-60 ton6.2-6.8m
169-4E-5180416-19 MPa169mm5180mm32-60 ton6.2-6.9m
169-4E-5390416-19 MPa169mm5390mm32-60 ton6.2-6.9
169-4E-5460416-19 MPa169mm5460mm32-60 ton6.5-7.3
185-4E-4280416-19 MPa185mm4280mm25-45 ton5.6m
185-4E-4640416-19 MPa185mm4640mm30-45 ton5.6-6.1m
185-4E-5000416-19 MPa185mm5000mm32-50 ton6.2-6.5m
185-4E-5390416-19 MPa185mm5390mm40-60 ton6.2-6.8m
185-4E-5460416-19 MPa185mm5460mm40-65 ton6.5-7.3m
185-4E-5780416-19 MPa185mm5780mm45-70 ton6.9-7.7m
185-4E-6000416-19 MPa185mm6000mm50-80 ton7.3-8.2m
191-5E-5780516-19 MPa191mm5780mm40-70 ton6.9-7.7m
191-5E-6200516-19 MPa191mm6200mm45-80 ton7.3-8.2m
191-5E-7130516-19 MPa191mm7130mm50-85 ton7.8-8.5m
191-5E-9030516-19 MPa191mm9030mm55-90 ton10-11m
220-5E-7130516-19 MPa220mm7130mm65-100 ton7.8-8.5m
220-5E-9030516-19 MPa220mm9030mm65-100 ton10-11m

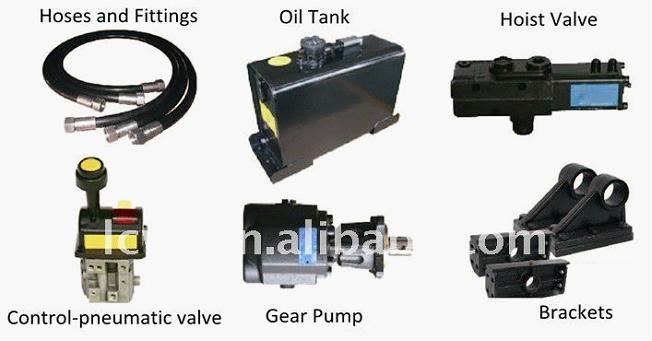

we also provide the hydraulic stysem for your need :
